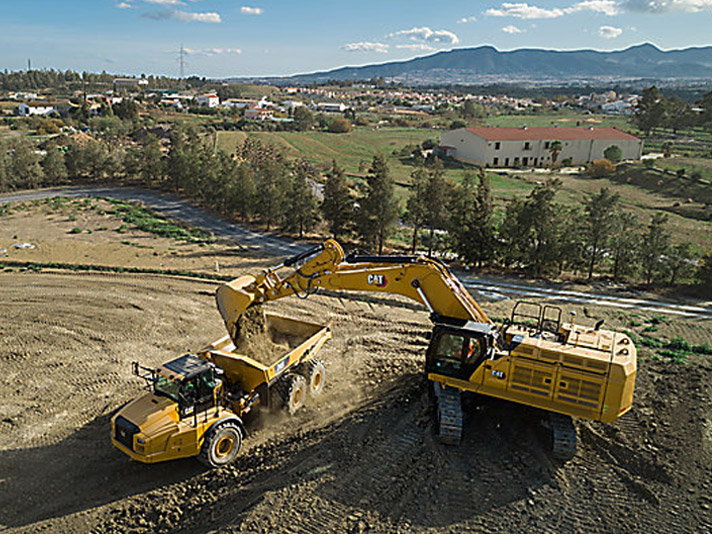

CAT Hydraulic Excavator 374

High production, more durability, and less maintenance are what the 374 Next Generation Excavator will bring to your business.

Compare

Get a Quote

Specifications

Overview

High production, more durability, and less maintenance are what the 374 Next Generation Excavator will bring to your business.

Engine

Net Power - ISO 9249

358 kW

Engine Model

Cat C15

Engine Power - ISO 14396

359 kW

Bore

137 mm

Stroke

171 mm

Displacement

15.2 l

Swing Drive

20 l

Ground Clearance

782 mm

Hydraulic System

Main System - Maximum Flow - Implement

896 l/min

Maximum Pressure - Equipment

37000 kPa

Maximum Pressure - Equipment - Lift Mode

38000 kPa

Maximum Pressure - Travel

35000 kPa

Maximum Pressure - Swing

3500 kPa

Swing

Swing Speed

6.5 r/min

Swing Mechanism

Maximum Swing Torque

298 kN·m

Weights

Operating Weight

74000 kg

Service Refill Capacities

Fuel Tank Capacity

920 l

Cooling System

71 l

Engine Oil

62 l

Final Drive - Each

32 l

Hydraulic System - Including Tank

620 l

Hydraulic Tank

326 l

Shipping Length

12978 mm

Tail Swing Radius

4171 mm

Counterweight Clearance

1494 mm

Track Length

5873 mm

Maximum Reach at Ground Level

11470 mm

Maximum Cutting Height

11000 mm

Maximum Loading Height

7050 mm

Minimum Loading Height

3470 mm

Maximum Vertical Wall Digging Depth

3710 mm

Turning Circle

Note

Track gauge undercarriage extended with 650 mm (26") shoes; transport width undercarriage retracted with 650 mm (26") shoes and no steps

Dimensions

Stick

M2.57m (8'5")

Bucket

XD 4.4 m³ (5.75 yd³)

Shipping Height - Top of Cab

3559 mm

Handrail Height

3982 mm

Track Length to Center of Rollers

4705 mm

Transport Width

3400 mm

Boom

Mass 7.0m (23)

Stick

M2.57m (8'5")

Bucket

XD 4.4 m³ (5.75 yd³)

Undercarriage

Track Gauge

3410 mm

Working Ranges & Forces

Maximum Depth Cut for 2440 mm (8 ft) Level Bottom

7080 mm

Bucket Digging Force - ISO

405 kN

Stick Digging Force - ISO

352 kN
