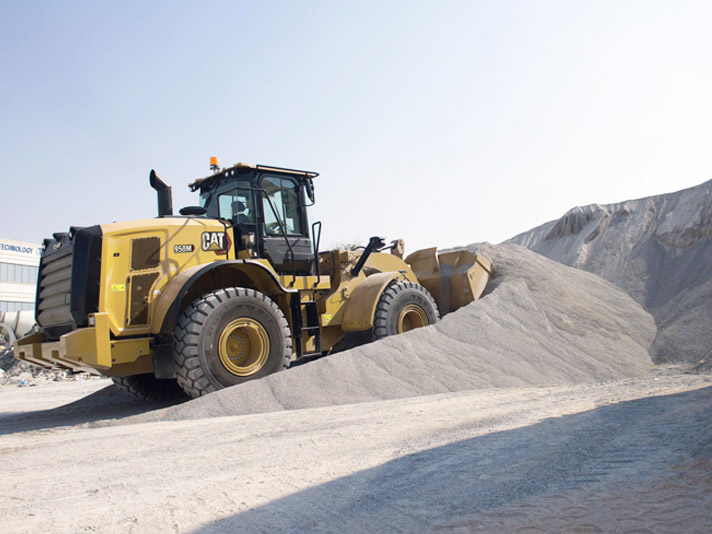

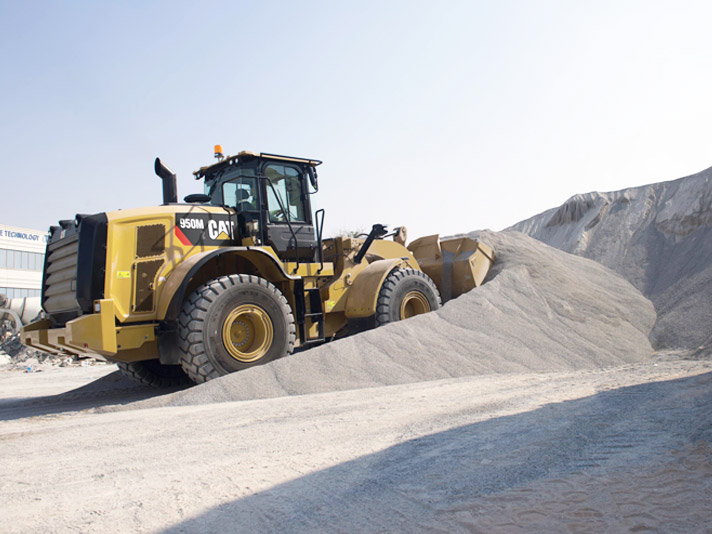

CAT Medium Wheel Loader 950M Z CEV Stage V Compliance

The 950M Z Wheel Loader engine meets India BHARAT-V emission standards and is equipped with acombination of proven electronic, fuel, air, and aftertreatment components. Applying proven technologies systematically and strategically lets us meet our customers’ high expectations for productivity, fuel efficiency, reliability, and service life. Deep system integration results in reduced emissions, improved performance, and improved fuel economy without interrupting machine performance, making it seamless to operators.

Compare

Get a Quote

Specifications
Benefits & features

Overview

Engine

Displacement

7.01 L

Max Gross Power @ 2,000 rpm – ISO 14396 (metric)

186bkW

Max Net Power @ 2,000 rpm – ISO 9249 (metric)

232 hp

Max Gross Power @2,100 rpm - SAE J1995

187 kW

Max Gross Power @2,100 rpm - ISO 14396

186 kW

Max Net Power @2,100 rpm - SAEJ1349

171 kW

Max Net Power @2,100 rpm - ISO9249

171 kW

Peak Gross Torque (1,300 rpm) - SAE J1995

1235 N·m

Peak Gross Torque (1,300 rpm) - ISO 14396

1231 N·m

Maximum Net Torque (1,300 rpm)

1163 N·m

Engine Model

Cat C7.1 ACERT

Operating Specifications

Static Tipping Load - Full 40° Turn - No Tire Deflection

11624 kg

Static Tipping Load - Full 40° Turn - with Tire Deflection

10926 kg

Breakout Force

152 kN

Weights

Operating Weight*

18211 kg

Transmission

Forward 3

19. 3 km/h

Forward 4

25.7 km/h

Reverse 1

6.9 km/h

Forward 5

39.5 km/h

Reverse 2

12 km/h

Reverse 3

25.7 km/h

Forward 1

6.9 km/h

Forward 2

12 km/h

Service Refill Capacities

Crankcase

22 L

DEF Tank

16 L

Differentials and Final Drives - Front

43 L

Differentials and Final Drives - Rear

43 L

Transmission

43 L

Hydraulic Tank

125 L

Cooling System

59 L

Fuel Tank

275 L

Hydraulic System

Implement Pump Type

Variable Axial Piston

Hydraulic Cycle Time - Total

9.5 Seconds

Implement System: Maximum Pump Output (2,340 rpm)

322 L /min

Implement System: Maximum Operating Pressure

27900 kPa

Bucket Capacities

Bucket Range

2.5-9.2 m

Dimensions

Wheelbase

3350 mm

Ground Clearance

368 mm

Height to Top of ROPS

3445 mm

Height to Top of Exhaust Pipe

3414 mm

Height to Top of Hood

2697 mm

Center Line of Rear Axle to Edge of Counterweight

1905 mm

Center Line of Rear Axle to Hitch

1675 mm

Overall Length (without bucket)

6938 mm

Hinge Pin Height at Carry Height

663 mm

Hinge Pin Height at Maximum Lift

3995 mm

Lift Arm Clearance at Maximum Lift

3410 mm

Rack Back at Maximum Lift

60 degrees

Rack Back at Carry Height

49 degrees

Rack Back at Ground

41 degrees

Maximum Width over Tires (loaded)

2822 mm

Tread Width

2140 mm

Reliability,Productivity and Fuel Efficiency

10% more fuel efficient than K Series*
Up to 25% more efficient than H Series*

Linkage and Work Tools

Performance Series buckets and range of work tools.
Z-bar with best-in-class visibility.
Fusion™ « zero-of fset » coupler (option).

Engine and Aftertreatment Advancements

Cat^® C 7.1 ACER T engine.
Meets Japan 2 014 (Tier 4 Final) emission standards.
Productive Economy Mode.

Transmission Advancements

5-speed power shift transmission.
Lock up clutch torque converter with lock-to-lock shifting.
Split flow oil system and multi-viscosity oil.

Axle Advancements

On-the-go disc-t ype front dif ferential locks.
(front and rear fully automatic option)
Caliper disc parking brake.

Next Generation Hydraulic Systems

Next generation main valve
Next generation ride control system with dual accumulators.
Next generation implement pump with increased displacement.
Full flow and kidney loop filtration.
Load-sensing hydraulics with simultaneous hydraulic functions.
3rd and 4th function (option).

Best-in-class Operator Environment

Optimized all-around visibility.
Steering wheel (E-H joystick steering option).
Touch screen multifunction color display with integrated controls.
Stair-like ingress and egress.
Seat-mounted finger tip electro-hydraulic implement controls.
Automatic climate control.
Low operator sound levels.

Advanced Technology with Cat Connect

Link technologies, like Product Link^™ to monitor equipment and manage production using online VisionLink^® software.
Payload technologies, like Cat Production Measurement (option) to measure payloads and optimize productivity.
Detect technologies, like the rear vision camera to keep people safe and help the operator work more productively.
