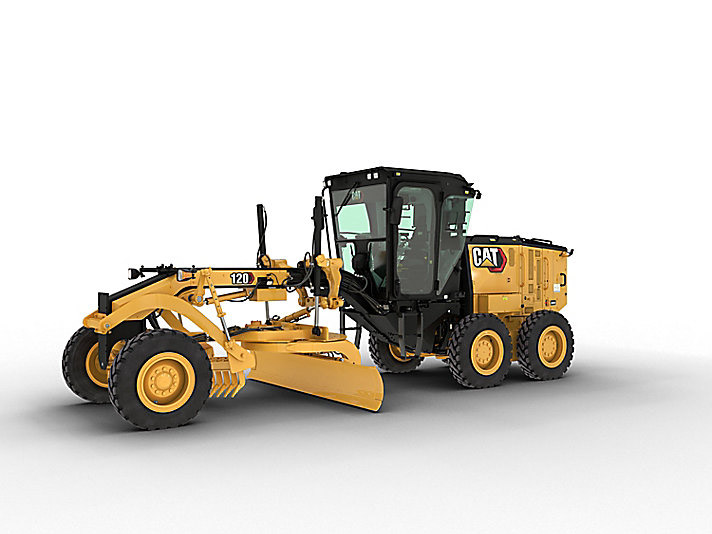

CAT Motor Grader 120 CEV Stage V Compliance

Operator comfort, smart systems and respected Cat construction help make the Cat^® 120 motor graders leaders in their class. This machine is ready to tackle your needs with speed and enhanced grading performance.

Compare

Get a Quote Download Brochure

Specifications
Benefits & features

Overview

Engine

Net Power Range (Tier 3)

123 kW

Engine Model

Cat 7.1

Engine RPM

2,000

Emissions

China Nonroad Stage III emission standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA, and meets India CEV Stage V emission standards

Bore

105 mm

Displacement

7.01 l

Maximum Torque - ISO 9249

822 N·m

Standard Capability

50 °C

Stroke

135 mm

Torque Rise - ISO 9294

42%

Number of Cylinders

Note (1)

Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.

Note (2)

Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.

Note (3)

Power as declared per ISO 14396

Note (1)

Typically equipped includes ROPS cabin, 3.7 m (12 ft) blade, 14.00R24 tires, push plate, ripper, bottom guard, operator, and full fluids.

Engine - U.S. EPA Tier 4 Interim Certified

Derating Altitude

3000 m

Turning Circle

Note

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a carbon dioxide equivalent of 2.288 metric tonnes.

Note

Typically equipped includes ROPS cabin, 3.7 m (12 ft) blade, 14.00R24 tires, push plate, ripper, bottom guard, operator, and full fluids.

Note

*Typically equipped with push block and ripper.
