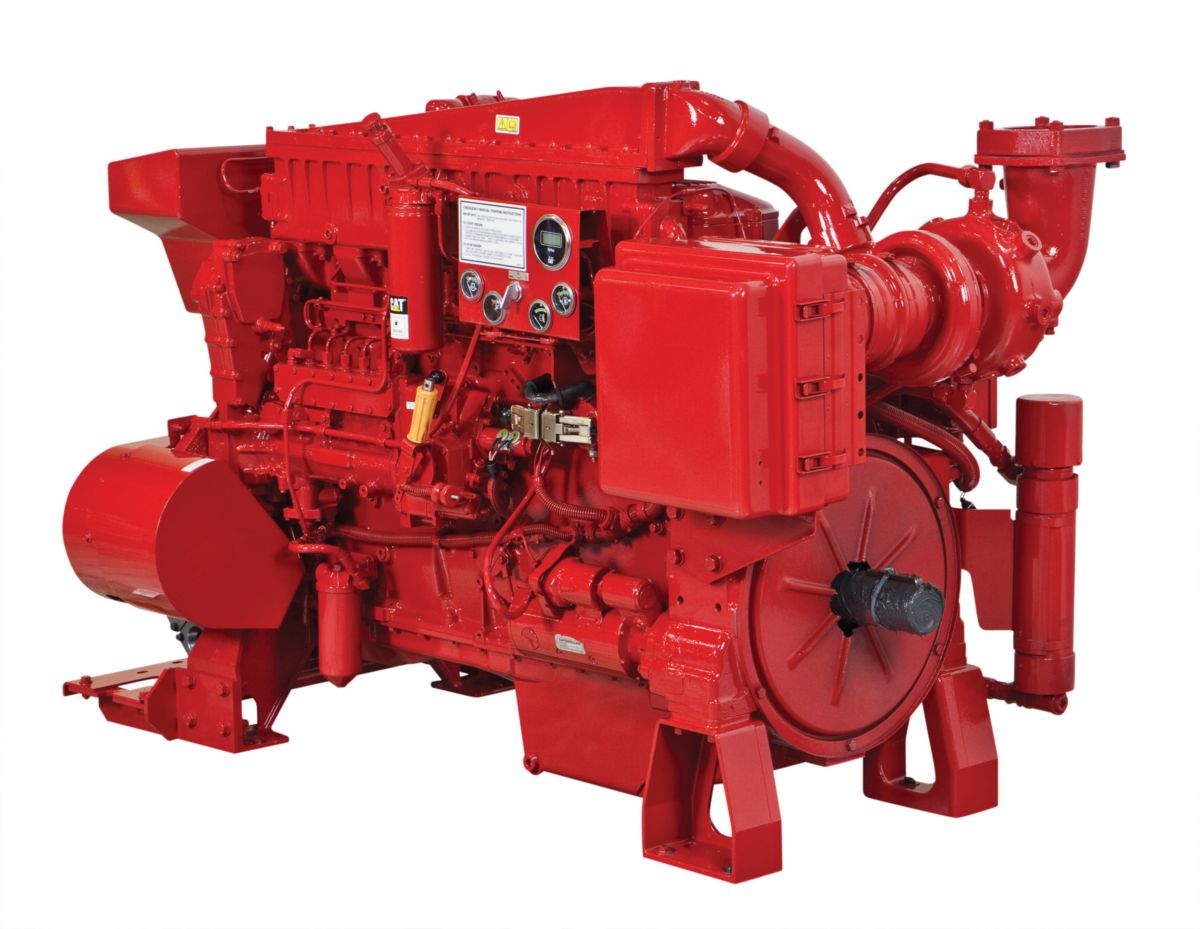

CAT Offshore Production Engine 3406C

Cat 3406C Diesel Fire Pump Engine. Ratings: 218-359 bkW (292-482 bhp) @ 1750-2300 rpm are non-certified. Available for global non-regulated areas. FM Approved, UL Listed.

Get a Quote

Overview

Cat 3406C Diesel Fire Pump Engine. Ratings: 218-359 bkW (292-482 bhp) @ 1750-2300 rpm are non-certified. Available for global non-regulated areas. FM Approved, UL Listed.

Generator Set Specifications

Minimum Rating
217.0 bkW
Maximum Rating
359.0 bkW

Engine

Emissions
Non-certified
Bore
137.0 mm
Stroke
165.0 mm
Displacement
14.6 L
Aspiration
Turbocharged Aftercooled

Engine Specifications

Engine Weight, net dry
1487.0 kg
Oil Change Interval
250.0 hr
Flywheel and Flywheel Housing
SAE No. 1
Flywheel Teeth
113

General

Rotation (from flywheel end)
Counterclockwise

Capacity for Liquids

Lube Oil System (refill)
34.0 L
Cooling System (engine only)
23.0 L

Generator Set Dimension

Length
1883.0 mm

Moldboard.

Width
1175.0 mm

Ripper

Height
1315.0 mm
