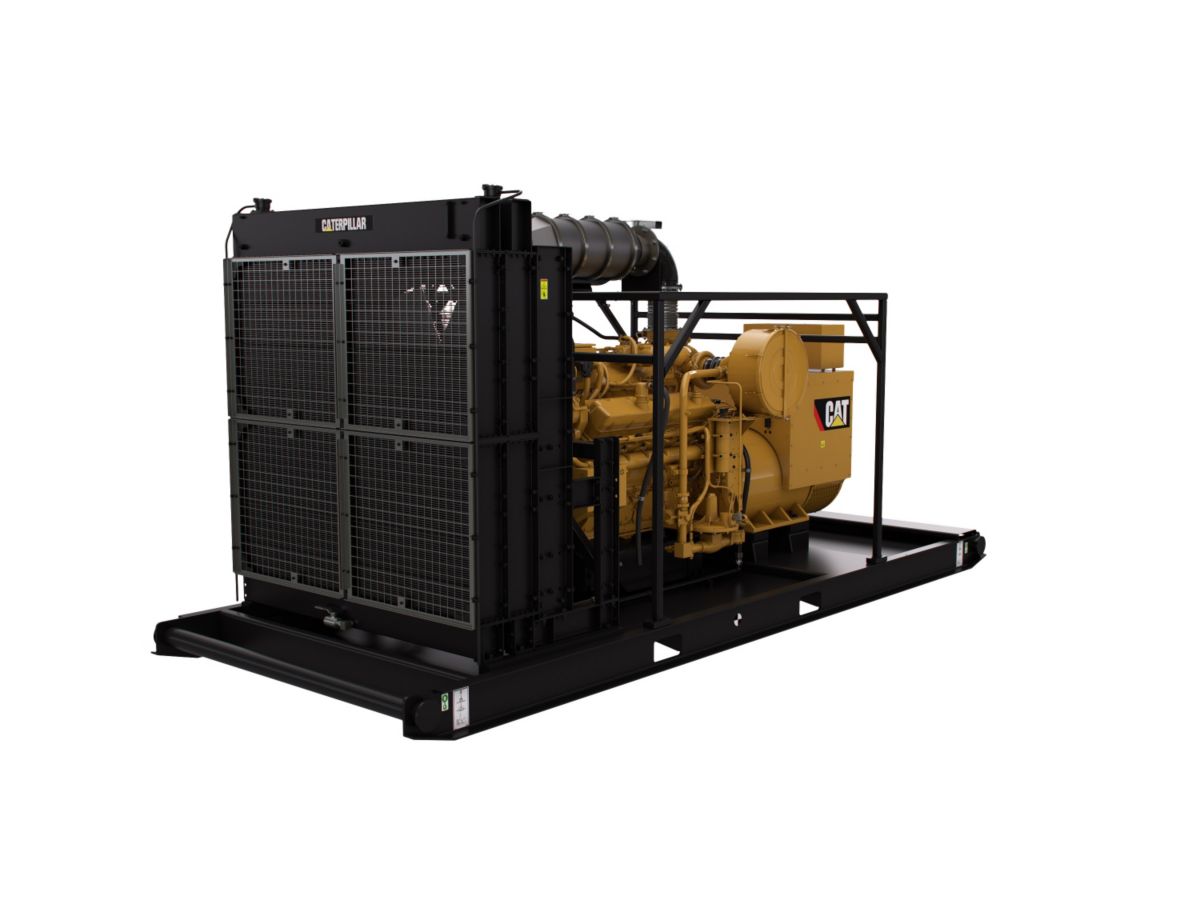

CAT Oilfield Gas Generator Set CG137-12

Production of oil and gas in the oilfield can be a challenge when utility power is not available. The Caterpillar product line of oilfield gas generator sets provides the ideal solutions for this challenge. Engines are designed to run on low to no-cost well site gas without sacrifice on performance. These generator sets allow customers to significantly reduce fuel cost and avoid the expense and logistics of diesel fuel deliveries. Plus, they are designed to withstand the harsh conditions in the oilfield and feature a heavy-duty construction ideal for loading and unloading operations. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. CG137-12 oilfield gas generator set. Rating: 400 ekW (500 kVA) @ 60 Hz (1800 rpm). Configurations available to meet NSPS emission standards in non-attainment areas.

Get a Quote

Overview

Production of oil and gas in the oilfield can be a challenge when utility power is not available. The Caterpillar product line of oilfield gas generator sets provides the ideal solutions for this challenge. Engines are designed to run on low to no-cost well site gas without sacrifice on performance. These generator sets allow customers to significantly reduce fuel cost and avoid the expense and logistics of diesel fuel deliveries. Plus, they are designed to withstand the harsh conditions in the oilfield and feature a heavy-duty construction ideal for loading and unloading operations. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. CG137-12 oilfield gas generator set. Rating: 400 ekW (500 kVA) @ 60 Hz (1800 rpm). Configurations available to meet NSPS emission standards in non-attainment areas.

Generator Set Specifications

Maximum Rating
400 ekW (500 kVA)
Minimum Rating
400 ekW (500 kVA)

Generator Set Configurations

Emissions/Fuel Strategy
U.S. EPA Tier II Nonroad Mobile Emissions Certified. Available for NSPS compliance via Design to Order process

Engine

Aspiration
Turbocharged-Aftercooled
Bore
137.0 mm
Stroke
164.0 mm
Displacement
29.0 L

Engine Specifications

Manifold type
Watercooled
Engine control and protection
ADEM A4
Generator set control
EMCP 4.4 Control Panel
Generator
SR4B
Frequency (Speed)
60 Hz (1800 rpm)

Capacity for Liquids

Fuel
CNG, LNG, field gas, natural gas
Lube Oil System (refill)
170.0 L
Cooling system (engine)
55.5 L

Generator Set Dimension

Length
5842.0 mm

Moldboard.

Width
2261.0 mm

Ripper

Height
2599.0 mm

Winch

Weight
8950.0 kg
