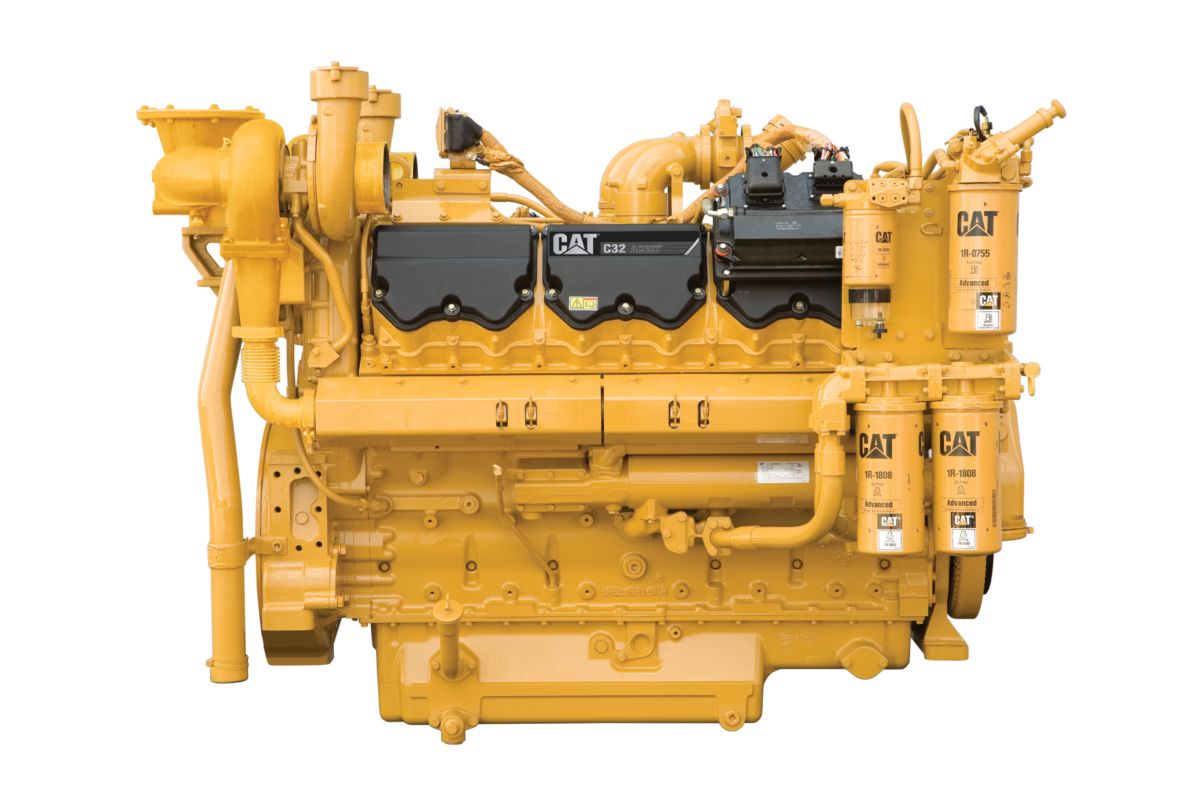

CAT Water-Cooled Manifold Engine C32 ACERT

Cat® C32 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C32 ACERT engines to deliver excellent performance with low operating costs and emissions. Applications powered by C32 ACERT engines include well stimulation pumping, pump skids, nitrogen units, acidizing units, blenders, and hydraulic power units. Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C32 ACERT water-cooled manifold engines, with ratings: 597-914 bkW (800 1125 bhp) @ 2100 rpm meet IMO Tier II, U.S. EPA Marine Tier 2, and U.S. EPA Non-road Tier 2 equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.

Get a Quote

Overview

Cat® C32 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C32 ACERT engines to deliver excellent performance with low operating costs and emissions. Applications powered by C32 ACERT engines include well stimulation pumping, pump skids, nitrogen units, acidizing units, blenders, and hydraulic power units. Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C32 ACERT water-cooled manifold engines, with ratings: 597-914 bkW (800 1125 bhp) @ 2100 rpm meet IMO Tier II, U.S. EPA Marine Tier 2, and U.S. EPA Non-road Tier 2 equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.

Generator Set Specifications

Minimum Rating
597.0 bkW
Maximum Rating
914.0 bkW

Engine

Aspiration
Turbocharged-Aftercooled
Displacement
32.1 L
Stroke
162.0 mm
Bore
145.0 mm
Emissions
EPA and CARB Non-Road Mobile Tier 2, EPA Marine Tier 2, IMO Tier II, China Stage III

Engine Specifications

Flywheel and Flywheel Housing
SAE No. 0 or SAE No. 1
Flywheel Teeth
136

Generator Set Dimension

Length
1933.0 mm

Moldboard.

Width
1488.0 mm

Ripper

Height
1389.0 mm

Winch

Weight
2306.0 kg
