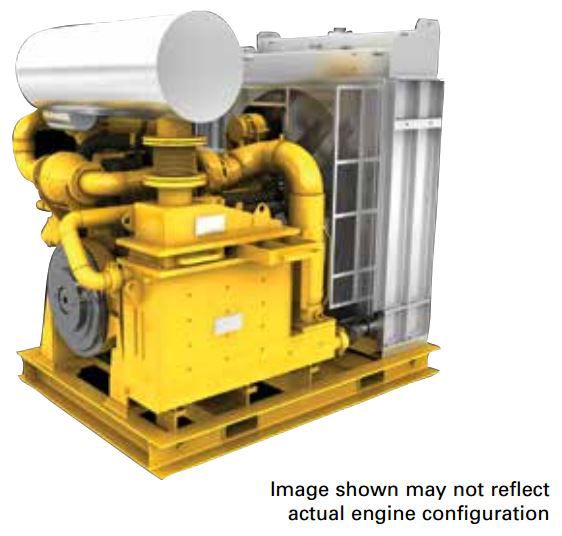

CAT Well Servicing HazPak C7 ACERT

When the job takes you into a hazardous location, Cat HazPak engines are ready. Our complete range of services and engine packages cover both industry standards and your operation with maximum safety.Cat C7 ACERT HazPaks are hazardous location power units that are the ideal solution for specialized and demanding operations in the oilfield. Units are hazardous-location certified from the factory to minimize installation design, time, and cost. HazPaks are certified to operate in potentially explosive environments.Cat hazpaks are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Cat C7 ACERT HazPak. Rating: 172-205 bkW (230-275 bhp) @ 2200 rpm

Get a Quote

Overview

When the job takes you into a hazardous location, Cat HazPak engines are ready. Our complete range of services and engine packages cover both industry standards and your operation with maximum safety.Cat C7 ACERT HazPaks are hazardous location power units that are the ideal solution for specialized and demanding operations in the oilfield. Units are hazardous-location certified from the factory to minimize installation design, time, and cost. HazPaks are certified to operate in potentially explosive environments.Cat hazpaks are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Cat C7 ACERT HazPak. Rating: 172-205 bkW (230-275 bhp) @ 2200 rpm

Generator Set Specifications

Minimum Rating
172.0 bkW
Maximum Rating
205.0 bkW

Package Specifications

Peak Torque at Speed
925 Nm (682.24 lb-ft) @ 1650 rpm
Weight, Net Dry (approx)
2045.0 kg

Engine

Displacement
7.2 L
Aspiration
Turbocharged-Aftercooled
Stroke
127.0 mm
Bore
110.0 mm
Emissions
EPA & CARB Non-Road Tier 3, EU Stage IIIA, EPA Marine Tier 2, IMO II

Engine Specifications

Governor and Protection
Electronic ADEM™ A4
Oil Change Interval
250 hours
Flywheel and Flywheel Housing
SAE 1, 2, or 3
Flywheel Teeth
156 (SAE 1), 135 (SAE 2), 126 (SAE 3)

General

Rotation (from flywheel end)
Counterclockwise

Capacity for Liquids

Lube Oil System (refill)
34.0 l

Service Refill Capacities

Cooling System
74.0 l
