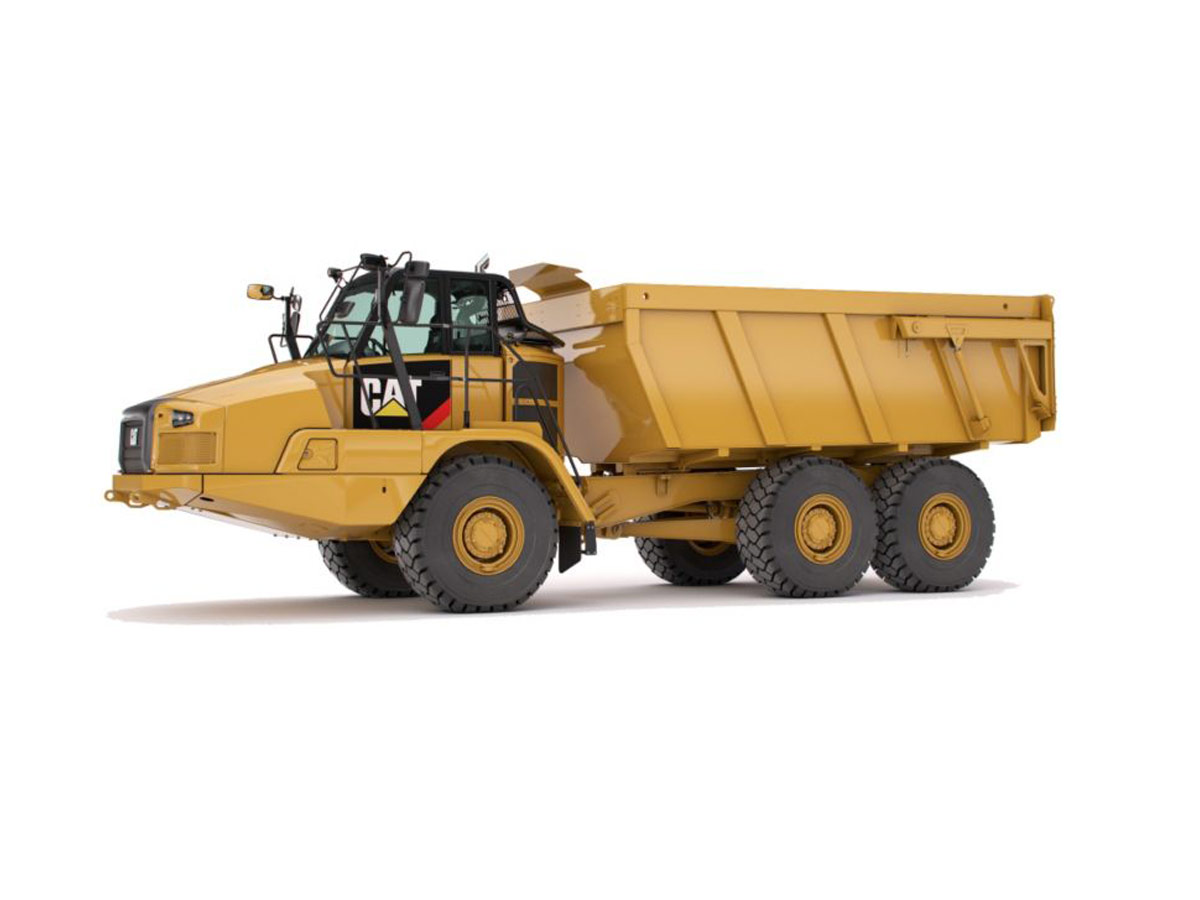

CAT Bare Chassis Articulated Truck 730C2

The OEM 730C2 Bare Chassis is a true “on-the-go” Automatic Traction Control (ATC). Strong, durable Cat C13 ACERT engine platform with U.S. EPA Tier 4 Final/EU Stage IV engine emission solution. Advanced Productivity Electronics Control Strategy (APECS) delivers a smooth shifting transmission, improving acceleration with higher productivity.

Get a Quote

Overview

The OEM 730C2 Bare Chassis is a true “on-the-go” Automatic Traction Control (ATC). Strong, durable Cat C13 ACERT engine platform with U.S. EPA Tier 4 Final/EU Stage IV engine emission solution. Advanced Productivity Electronics Control Strategy (APECS) delivers a smooth shifting transmission, improving acceleration with higher productivity.

Engine

Engine Model
Cat C13
Gross Power - SAE J1995
280.0 kW
Net Power - SAE J1349
274.0 kW
Bore
130.0 mm
Stroke
157.0 mm
Displacement
12.5 L
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV
Cat® C13 ACERT™
Net Power - ISO 14396
276.0 kW
No Engine De-rating Required Below
3810.0 m
Peak Engine Torque Gross (SAE J1995)
2141.0 N·m
Peak Engine Torque Net (ISO 14396)
2120.0 N·m
Peak Engine Torque Speed
1200.0 RPM

Weights

Rated Payload
28.0 tonne

Transmission

Forward 1
8.0 km/h
Forward 2
15.0 km/h
Forward 3
22.0 km/h
Forward 4
34.0 km/h
Forward 5
47.0 km/h
Forward 6
55.0 km/h
Reverse 1
9.0 km/h

Service Refill Capacities

Fuel Tank
412.0 L
Cooling System
83.0 L
Hydraulic System
110.0 L
Engine Crankcase
40.0 L
Transmission
35.0 L
Final Drives/Differential
135.0 L
Output Transfer Gear Box
24.0 L
DEF Tank ISO 22241-1
20.0 L

Sound Levels

Interior Cab
76.0 dB(A)

Standards

Brakes
ISO 3450 - 2011
Cab/FOPS
ISO 3449 Level II - 2005
Cab/ROPS
ISO 3471 - 2008
Steering
ISO 5010 - 2007

Steering

Lock to Lock
4.75 seconds @ 60 rpm

Turning Circle

Note
Dimensions are for machines equipped with 23.5R25 tires.
Turning Dimensions - Aisle width
5332.0 mm
Turning Dimensions - Clearance radius
8075.0 mm
Turning Dimensions - Inside radius
3879.0 mm
Turning Dimensions - SAE turning radius
7470.0 mm
Turning Dimensions - Steer angle - left/right
45.0 Degre

Long Wheel Base

The 730C2 can be ordered with or without hoist cylinders, and in standard wheel base (SWB) or long wheel base (LWB) configurations through your local Cat dealer on the standard Articulated Truck price list.

Water Truck Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects. Using an articulated truck bare chassis provides a flexible solution that is ideal for dust suppression, road construction, fire protection, and other applications. Caterpillar works with OEMs worldwide to match various size water tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

Service Truck Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects. Using an articulated truck bare chassis provides a flexible solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet. Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

Specialty Body Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for specialty body applications. Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling coal or waste, container trucks or hooklifts, cable reel trucks, and other applications. Caterpillar works with OEMs worldwide to match various size specialty bodies with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

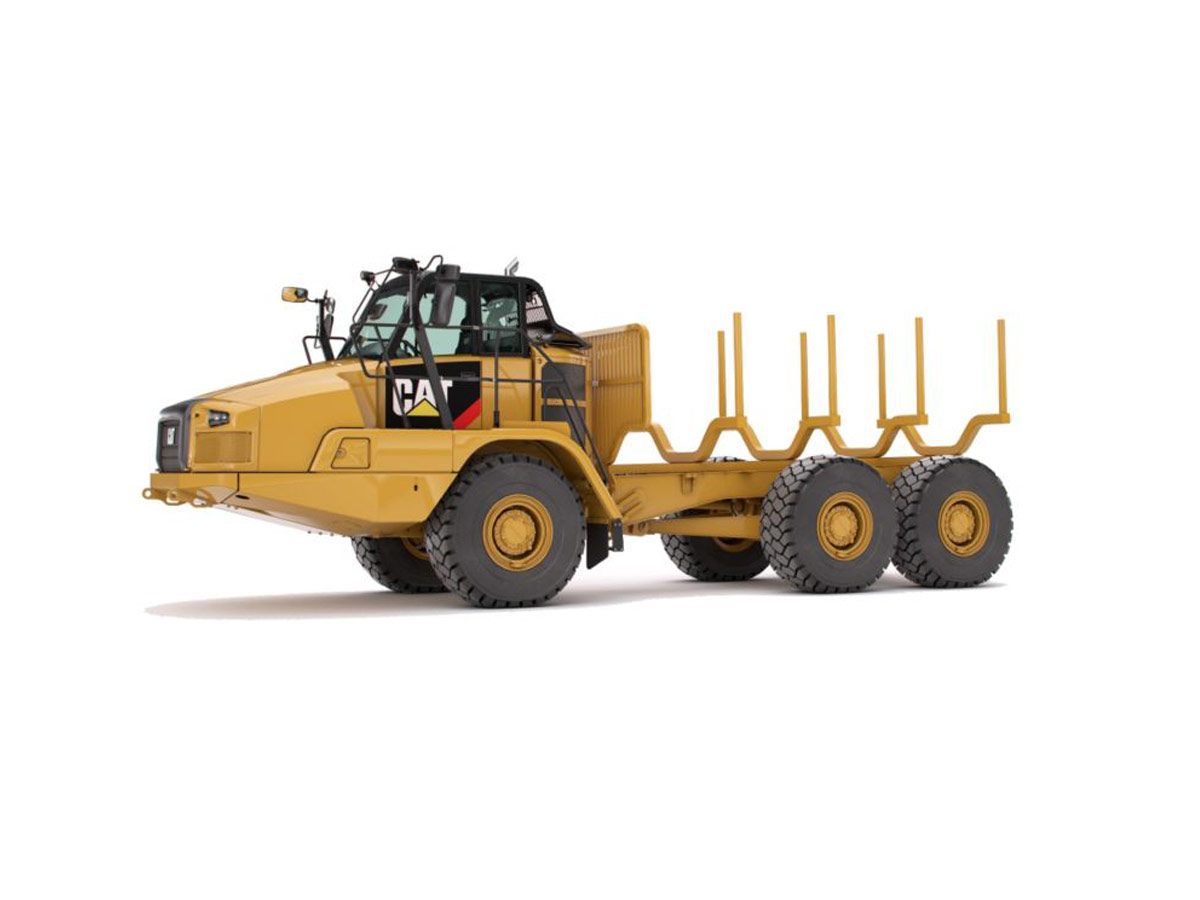

Forestry Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for forestry applications. Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling logs and other applications. Caterpillar works with OEMs worldwide to match various size specialty bodies with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.
