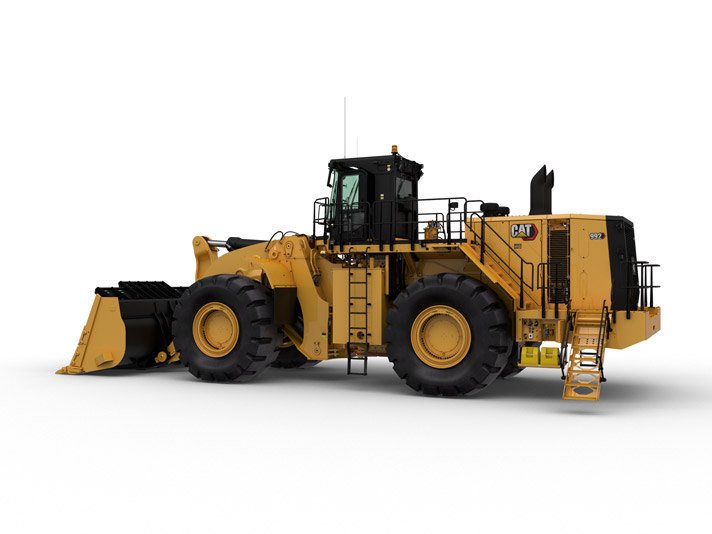

CAT Wheel Loader 992

Compare

Get a Quote

Specifications

Overview

Engine

Net Power

607 kW

Engine Model

Cat® C32B

Emissions

U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent

Rated Speed

1750 rpm

Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC (Highly Regulated Country) - Standard

671 kW

Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC - High Ambient

699 kW

Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC (Less Regulated Country) - Standard

676 kW

Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC - High Ambient

704 kW

Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - Standard

659 kW

Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - High Ambient

687 kW

Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - Standard

666 kW

Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - High Ambient

694 kW

Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - Standard

607 kW

Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - High Ambient

607 kW

Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - Standard

614 kW

Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - High Ambient

614 kW

Bore

145 mm

Stroke

162 mm

Displacement

32.1 l

Peak Torque - SAE J1995 - Tier 4/HRC - Standard @ 1,200 rpm

4765 N·m

Peak Torque - SAE J1995 - Tier 4/HRC - High Ambient @ 1,300 rpm

4820 N·m

Peak Torque - SAE J1995 - Tier 2/LRC - Standard @ 1,200 rpm

4796 N·m

Peak Torque - SAE J1995 - Tier 2/LRC - High Ambient @ 1,350 rpm

4841 N·m

Wheel Base

5890 mm

Wheel Base

5890 mm

Weights

Operating Weight

105882 kg

Operating Specifications

Rated Payload - Standard

23.1 t

Rated Payload - Standard (Material Handler)

27.2 t

Rated Payload - High Lift

20.4 t

Rated Payload - High Lift (Material Handler)

24.5 t

Bucket Capacity Range

11.5-24.5 m³ (15-32 yd³)

Cat Truck Match - Standard

775/777/785

Cat Truck Match - High Lift

777/785

Buckets

Bucket Capacities

11.5-24.5 m³ (15-32 yd³)

Transmission

Transmission Type

Cat Planetary Powershift

Forward - 1

7 km/h

Forward - 2

11.9 km/h

Forward - 3

20.5 km/h

Direct Drive - Forward 1

Disabled

Direct Drive - Forward 2

12.9 km/h

Direct Drive - Forward 3

22.6 km/h

Reverse - 1

7.5 km/h

Reverse - 2

13 km/h

Reverse - 3

22.4 km/h

Direct Drive - Reverse 1

8 km/h

Direct Drive - Reverse 2

14.2 km/h

Direct Drive - Reverse 3

24.7 km/h

Hydraulic System - Lift/Tilt

Lift/Tilt System - Circuit

Positive Flow Control

Lift/Tilt System - Pump

Variable Displacement Piston

Relief Valve Setting - Lift/Tilt

34500 kPa

Lift Cylinder - Bore

235 mm

Lift Cylinder - Stroke

1613 mm

Tilt Cylinder - Bore

292 mm

Tilt Cylinder - Stroke

1055 mm

Hydraulic System – Lift/Tilt

Maximum Flow at 2,165 rpm

950 l/min

Hydraulic Cycle Time

Rack Back

2.3 s

Dump

2.6 s

Total Hydraulic Cycle Time

17.1 s

Hydraulic Cycle Times

Rack Back - High Lift

2.3 s

Raise - High Lift

9 s

Dump - High Lift

2.6 s

Float Down - High Lift

3.2 s

Body Hoist

Raise

9 s

Hydraulic System - Implement

Float Down

3.2 s

Service Refill Capacities

Fuel Tank

1460 l

Cooling Systems

225 l

Crankcase

120 l

Transmission

195 l

Differential - Final Drives - Front

365 l

Differential - Final Drives - Rear

365 l

Hydraulic System Factory Fill (Implement)

394 l

Hydraulic Tank - Implement

228 l

Hydraulic Factory Fill (Steering)

123 l

Hydraulic Tank (Steering Tank Only)

99.5 l

Axles

Front

Fixed

Rear

Trunnion

Oscillation Angle

±9°

Standards

Brakes

ISO 3450:2011

Hydraulic System - Steering

Steering System - Circuit

Pilot, Load Sensing

Steering System - Pump

Piston, Variable Displacement

Maximum Flow at 1,400-1,850 rpm

265 l/min

Total Steering Angle

80°

Steering Cycle Times - Low Idle

4.9 s

Steering Cycle Times - High Idle

3.1 s

Hydraulic System – Steering

Steering Cut Off Pressure

31000 kPa

Cooling System

Ambient Capability Hydraulically Driven Demand Fan - Standard

43 °C

Ambient Capability, Hydraulically Driven Demand Fan - High

55 °C

Turning Circle

Note

Machine Sound Level (ISO 6396:2008) - 116 dB(A)

Note

Machine Sound Level (ISO 6396:2008) - 113 dB(A)

Dimensions – Standard Lift (Approximate)

Ground to Top of Exhaust Stacks

5169 mm

Ground to Top of ROPS

5571 mm

Ground to Top of Hood

3983 mm

Ground to Bumper Clearance

1145 mm

Ground to Lower Hitch Clearance

666 mm

Clearance at Maximum Lift

4630 mm

Maximum Overall Length

15489 mm

Ground to Top of Exhaust Stacks

5169 mm

Ground to Top of ROPS

5571 mm

Ground to Top of Hood

3983 mm

Ground to Bumper Clearance

1145 mm

Ground to Lower Hitch Clearance

666 mm

Clearance at Maximum Lift

5256 mm

Maximum Overall Length

15733 mm

Dimensions - Standard Lift - Approximate

Ground to Center of Front Axle

1308 mm

Reach - Maximum Lift

2503 mm

B-Pin Height - Maximum Lift

6948 mm

Maximum Overall Height - Bucket Raised

9390 mm

Rear Axle - Centerline to Bumper

4119 mm

Front Axle Centerline to Bucket Tip

5480 mm

Ground to Center of Front Axle

1308 mm

Reach - Maximum Lift

2319 mm

B-Pin Height - Maximum Lift

7465 mm

Maximum Overall Height - Bucket Raised

9759 mm

Rear Axle - Centerline to Bumper

4119 mm

Front Axle Centerline to Bucket Tip

5724 mm
