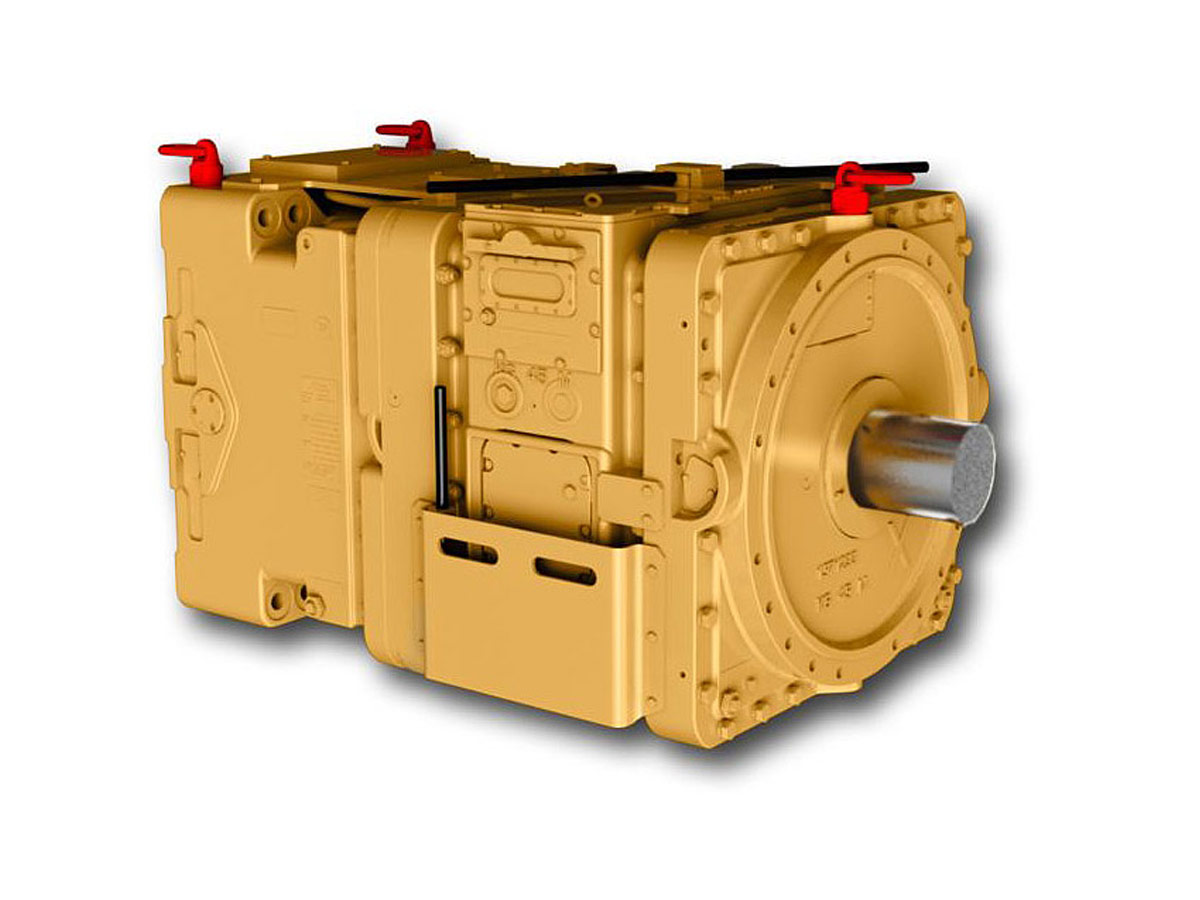

CAT Gearbox CST45 M

Get a Quote

Overview

N

Specifications

Maximum Output Torque for a Short Duration (3 sec.)
450000.0 N·m
Maximum Input Speed (motor speed)
1,782 rpm
Weight (without oil) - In-line Drive System
7200.0 kg

Shaft Design

Input Shaft (cylindrical)
DIN 5480-W 120×4
Output Shaft with Internal Toothing
DIN 5480-N 260×10×30×24

Requirements of Cooling Water

Maximum Water Inlet Temperature
25° C/298.15 K (77° F/298.15 K)
Required Cooling Water Quantity
30.0 L/min

Ripper

Height
1060.0 mm

Generator Set Dimension

Length
1697.0 mm

Moldboard.

Width
1120.0 mm

Typical Application

Description
Chain Type Longwall Machinery like Armored Face Conveyors (AFC) and Plow Systems

Maximum Output Torque (for 3 sec) Tmax [N·m]

P-45 M CST
450000.0 N·m
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 16
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 21
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39
700 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 45
540 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50
500 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 16
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 21
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39
1,142 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 45
881 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50
816 hp

Capacity

Gearbox Weight (without oil)
7200.0 kg
Oil Quantity
320.0 L
