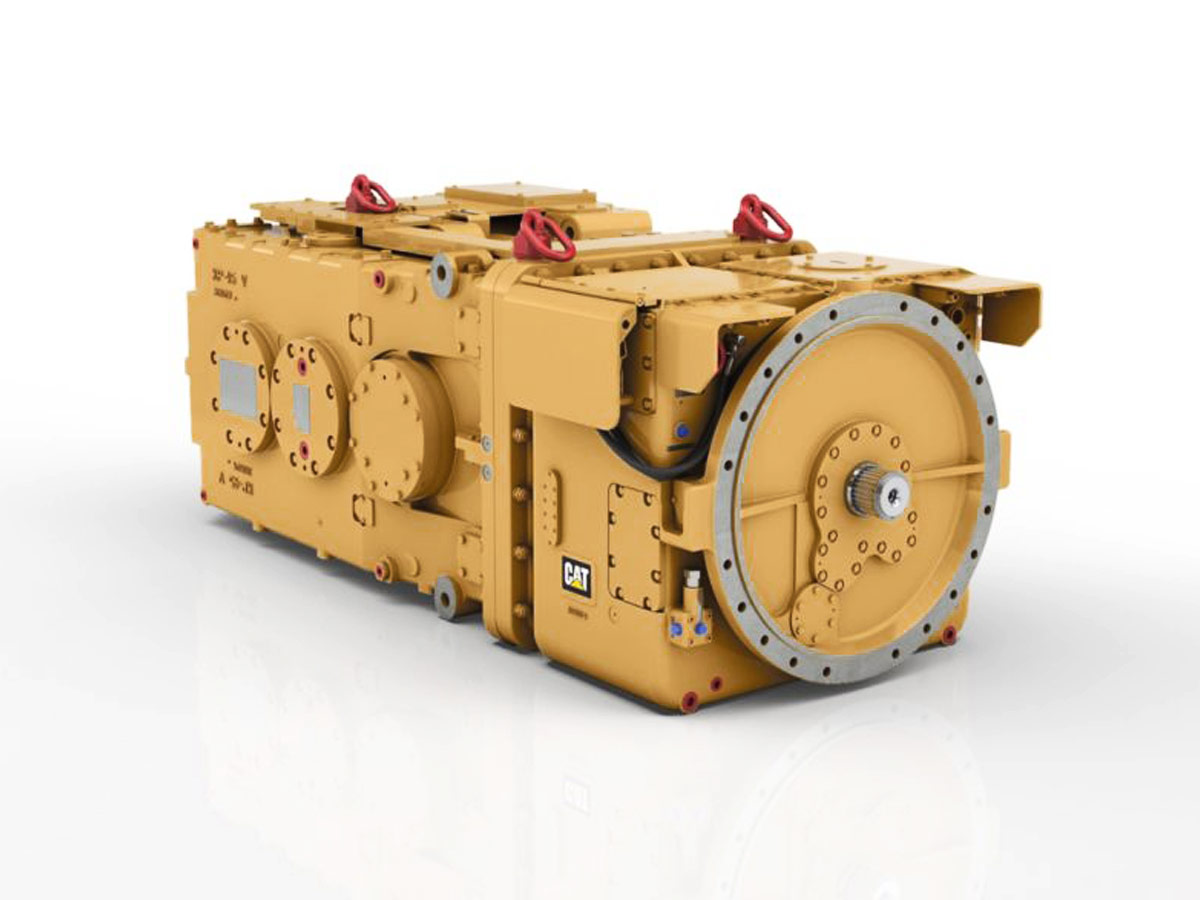

CAT Gearbox CST45 V

Compare

Get a Quote

Specifications

Overview

Specifications

Maximum Output Torque for a Short Duration (3 sec.)

450000.0 N·m

Maximum Input Speed (motor speed)

1,782 rpm

Weight (without oil) - In-line Drive System

5900.0 kg

Shaft Design

Input Shaft (cylindrical)

DIN 5480-W 120×4

Output Shaft with Internal Toothing

DIN 5480-N 260×10×30×24

Requirements of Cooling Water

Maximum Water Inlet Temperature

25° C/298.15 K (77° F/298.15 K)

Required Cooling Water Quantity

25.0 L/min

Dimension

KP-45 V CST - Height

1060.0 mm

KP-45 V CST - Length

2875.0 mm

KP-45 V CST - Width

1401.0 mm

P-45 V CST - Height

1060.0 mm

P-45 V CST - Length

1697.0 mm

P-45 V CST - Width

1120.0 mm

Typical Application

Description

Chain Type Longwall Machinery like Armored Face Conveyors (AFC)

Maximum Output Torque (for 3 sec) Tmax [N·m]

KP-45 V CST/P-45 V CST

450000.0 N·m

Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 16

1050 kW

Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 21

1050 kW

Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28

1050 kW

Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33

1050 kW

Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39

820 kW

Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 45

710 kW

Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50

650 kW

Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 16

1,713 hp

Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 21

1,713 hp

Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28

1,713 hp

Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33

1,713 hp

Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39

1,338 hp

Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 45

1,158 hp

Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50

1,061 hp

Capacity

KP-45 V CST - Gearbox Weight (without oil)

9700.0 kg

KP-45 V CST - Oil Quantity

730.0 L

P-45 V CST - Gearbox Weight (without oil)

5900.0 kg

P-45 V CST - Oil Quantity

430.0 L
