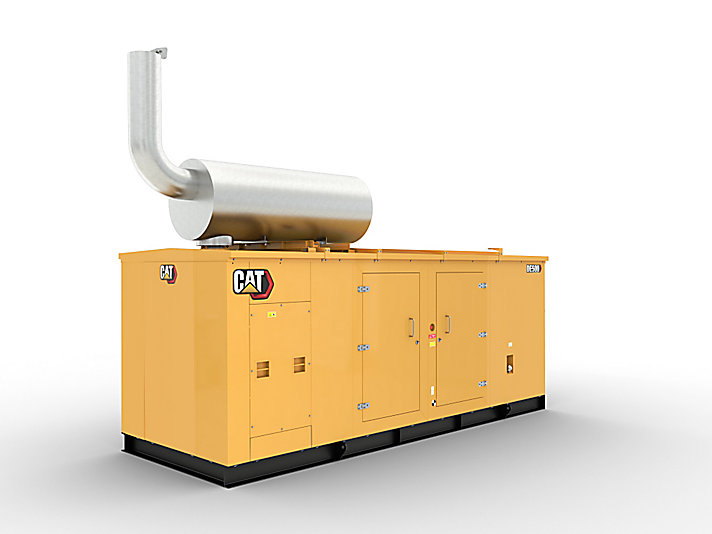

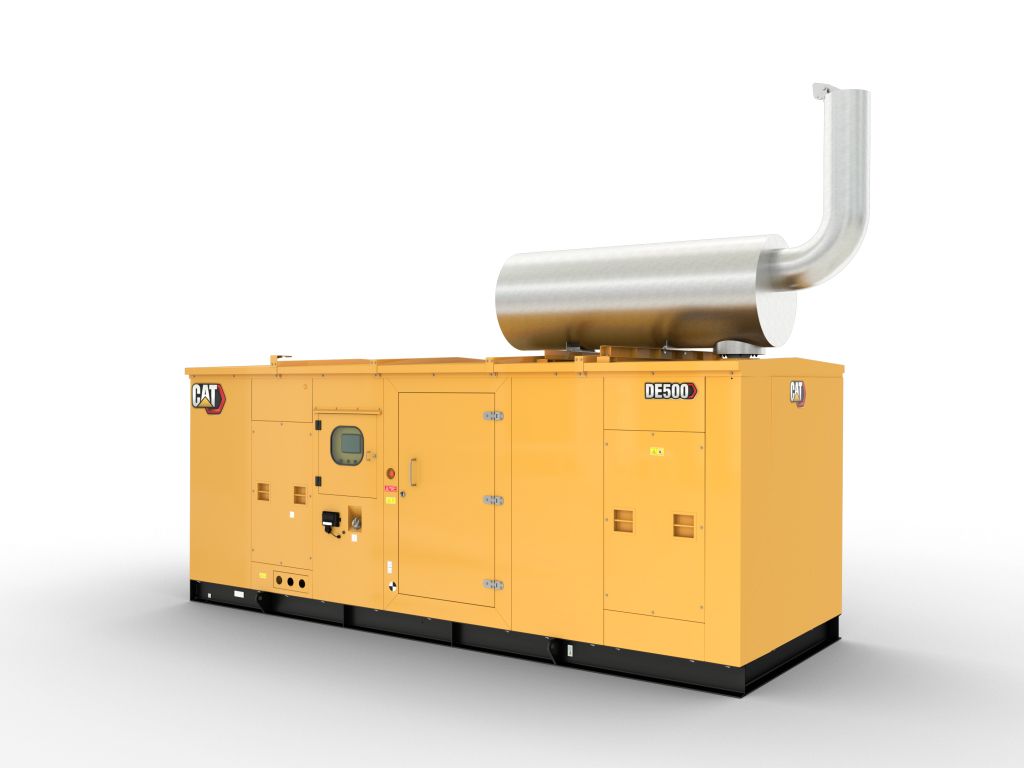

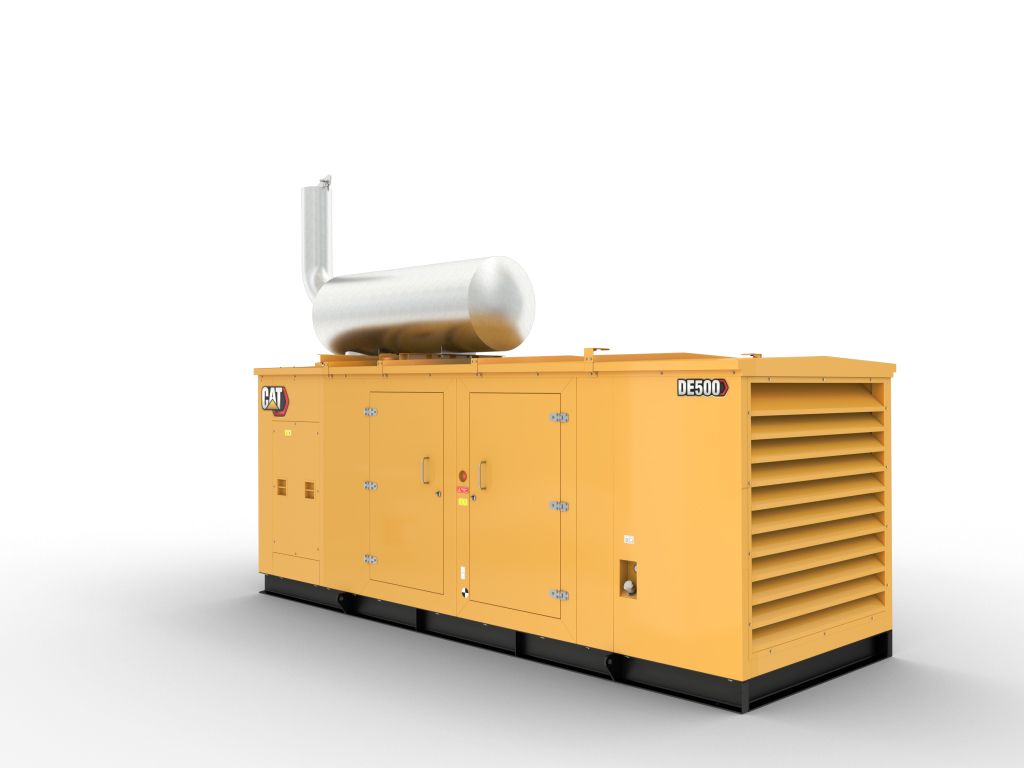

CAT 500 kVA Diesel Generator C18

The C18 diesel generator sets have been developed for your prime applications. Producing reliable power from 500 to 500 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The gensets are certified for latest India CPCB emission standards CPCB IV+ Emissions / Fuel Strategy.

Benefits:

  • Designed Specifically for India Regulations
  • Remote Connectivity 24/7/365 Monitoring:
    • Cat Connect option ensures your generator set is always ready to start and perform as expected
  • Integrated Cat® Product Link™ Control System
    • Track Genset Health and Operation Parameters
    • Genset Utilization and Performance Tracking

Get a Quote Download Brochure

Overview

The C18 diesel generator sets have been developed for your prime applications. Producing reliable power from 500 to 500 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The gensets are certified for latest India CPCB emission standards CPCB IV+ Emissions / Fuel Strategy.

Generator Set Specifications

Minimum Rating
500 kVa
Maximum Rating
500 kVa
Frequency
50 Hz
Speed
1500RPM
Emissions / Fuel Strategy
India CPCB/MoEF
Voltage
415Volts
Duty Cycle
Prime

Engine Specifications

Compression Ratio
18:1
Governor Type
Adem TM 6
Fuel System
MEUI
Air Inlet
Heavy duty air cleaner
Aspiration
Air to Air Aftercooled
Bore
145mm
Displacement
18.1 l
Stroke
183 mm
Engine Model
C18 ATAC, 1-6,4 Stroke Diesel
