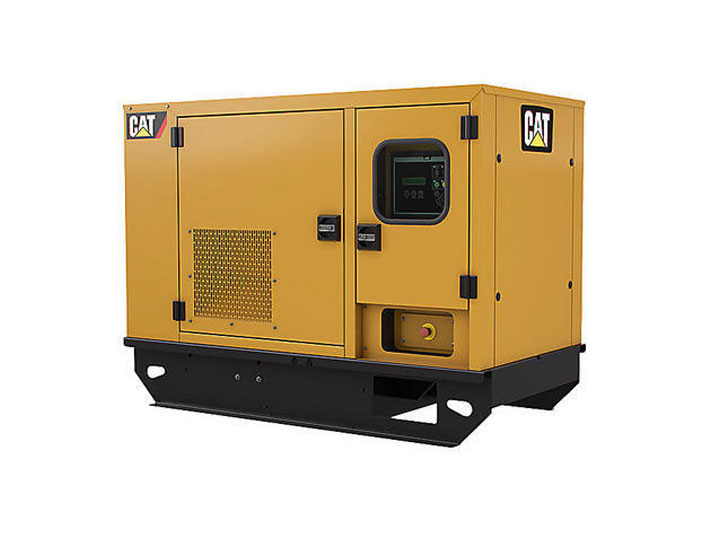

CAT Diesel Genset 250 KVA

CAT 250 KVA Diesel Generator sets are built to world-class standards, for high efficiency, low fuel consumption. The built of these Diesel Generators provides an optimum engine performance to meet the critical demands and offers better application synergy.

Our commercial and industrial generator sets come in a range of options to match your power needs, making selecting and installing simple.

Get a Quote

Overview

CAT 250 KVA Diesel Generator sets are built to world-class standards, for high efficiency, low fuel consumption. The built of these Diesel Generators provides an optimum engine performance to meet the critical demands and offers better application synergy.

Our commercial and industrial generator sets come in a range of options to match your power needs, making selecting and installing simple.

Exhaust System

Combustion air inlet flow rate (m3/min)
14.9
Exhaust stack gas temperature (Deg C)
485.0
Exhaust gas flow rate (M3/min)
39.6
Exhaust flange size (Internal diameter) (mm)
152.4
Exhaust system backpressure (maximum available) (kPa)
6.7

Fuel Consumption (Litres)

100% load with fan (L/hr)
57.2
75% load with fan (L/hr)
42.4
50% load with fan (L/hr)
29.5

Package Performance

Genset Power rating @0.8 p.f (kVA)
250
Genset Power rating with fan (ekW)
200

Cooling System

Ambient air temperature (design) (Deg C)
50
Air flow restriction (system) (kPa)
0.1
Air flow (max. @ raed speed for radiator arrangement) (M3/min)
376
Engine Coolant capacity with radiator / exp. Tank (L)
50.9
Engine coolant capacity (L)
15.9
Radiator coolant capacity (L)
36

Heat Rejection

Heat rejection to coolant (total) (kW)
129
Heat rejection to exhaust (total) (kW)
174
Heat rejection to atmosphere from engine (kW)
40
Heat rejection to atmosphere from generator (kW)
14.75

Lube System

Lube oil sump refill capacity with filter (L)
27.4

Others

Fuel tank capacity (L)
485
