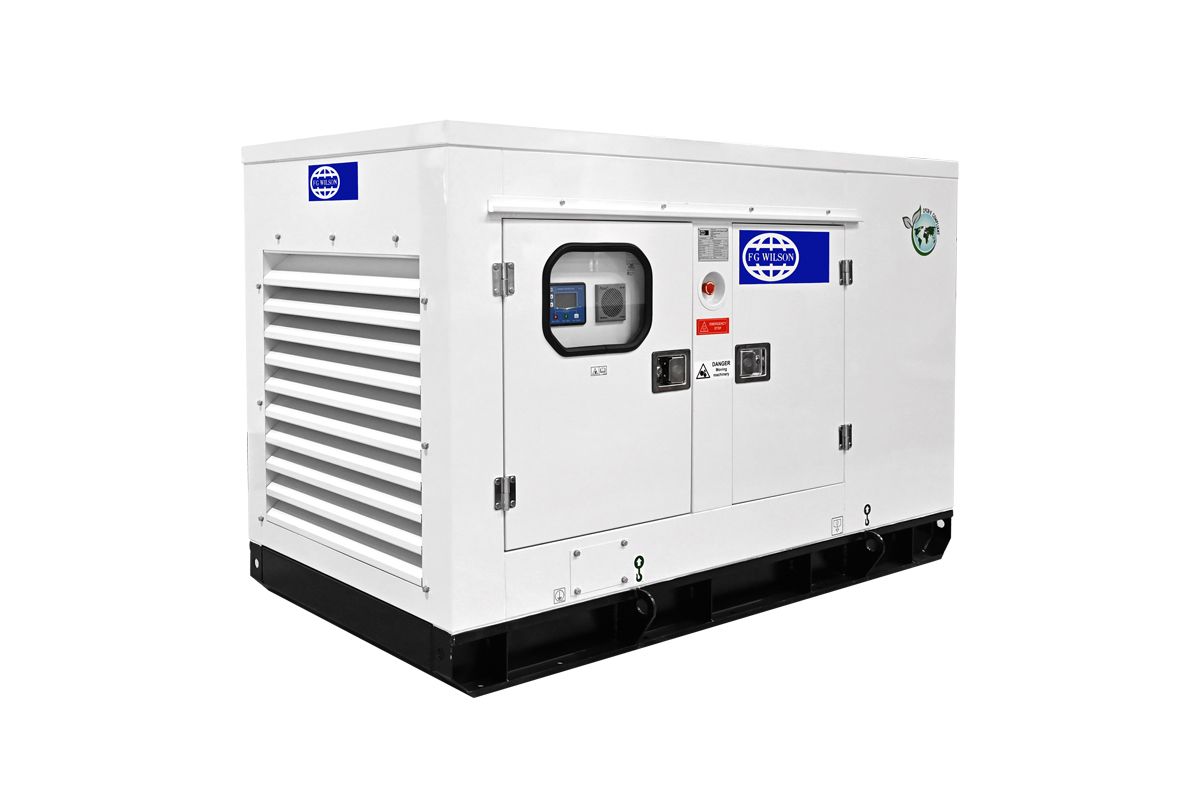

FG Wilson 20 kVA-2A DG Set

Meets latest India CPCBII as per G.S.R 771(E) dated 11/12/2013 and its further amendments. Meets CPCB / MOEF norms as per G.S.R 371(T) dated 17/05/2002 and its further amendments.

Get a Quote Download Brochure

Overview

Meets latest India CPCBII as per G.S.R 771(E) dated 11/12/2013 and its further amendments. Meets CPCB / MOEF norms as per G.S.R 371(T) dated 17/05/2002 and its further amendments.

Alternator Technical Data

Alternator Model
LSAP 40 H
Current amps (a)
28
No. of Bearings
1
Voltage Regulation
+/- 1%
Insulation Class
H

Engine Technical Data

Engine Model
AL2CTIDG2
Rated Power (kW)
16
Aspiration
TA
Cooling Systems
Liquid Cooled
Cooling System Capacity (l)
5.5
Engine Speed (rpm)
1500
Governing
Electronic A0
No of Cylinders
2
Bore / Stroke (mm)
104 / 113
Compression Ratio
16.5 : 1
Fuel Tank Capcity (l)
6.5
Fuel System / Type
Inline FIP
Lube Oil Spec
15W40

Fuel Consumption (Litres)

100% load with fan (L/hr)
6.1
75% load with fan (L/hr)
4.5
50% load with fan (L/hr)
3.2
