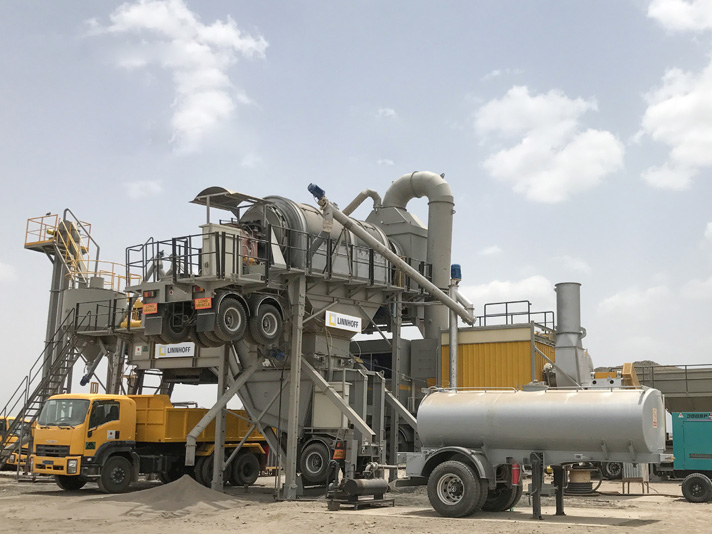

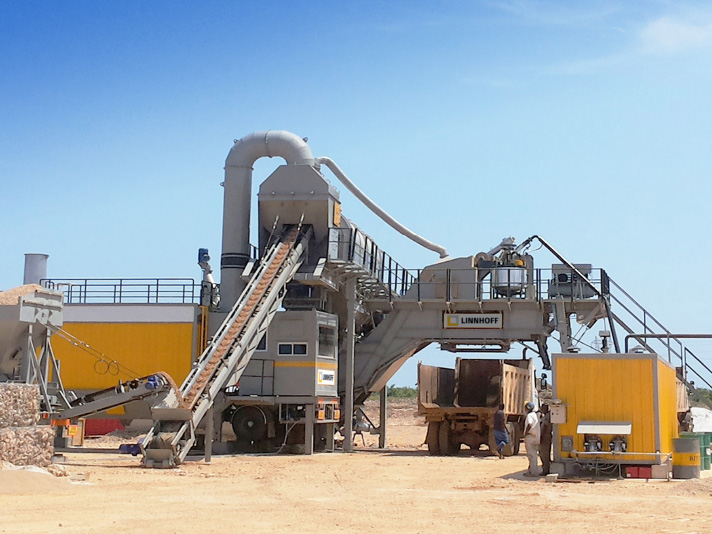

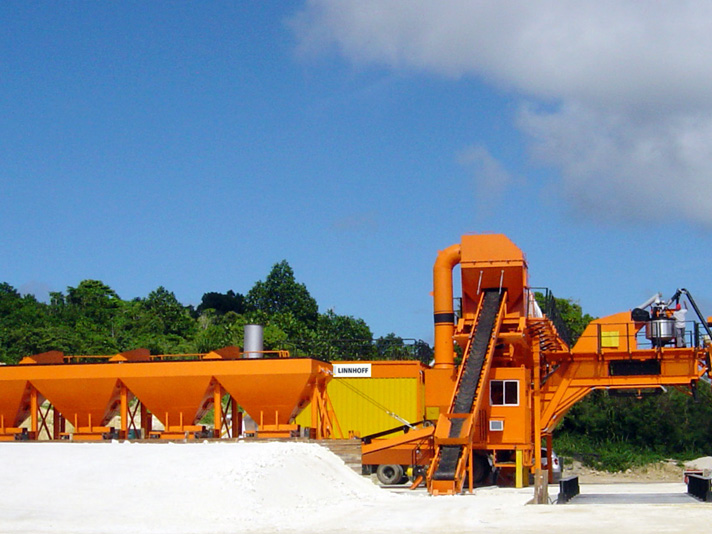

Linnhoff TSD MobileMix Asphalt Batching Plant

Linnhoff TSD MobileMix Asphalt Batching Plant is the epitome of absolute mobility with ease of installation, enabling it to be frequently relocated to different job sites, suitable for short-term projects or projects in remote locations. It is designed to maximise the plug-and-play convenience whilst minimising the time spent on mobilisation and relocation, with no heavy cranes and no heavy-concrete foundations required for its setup.

Get a Quote Download Brochure

Overview

Linnhoff TSD MobileMix Asphalt Batching Plant is the epitome of absolute mobility with ease of installation, enabling it to be frequently relocated to different job sites, suitable for short-term projects or projects in remote locations. It is designed to maximise the plug-and-play convenience whilst minimising the time spent on mobilisation and relocation, with no heavy cranes and no heavy-concrete foundations required for its setup.

FEATURES

Mobile Cold Feeder Module

  • Inclusive of built-in retaining wall, eliminating the need for the ramp’s concrete wall.
  • Feeder belt is equipped with shaft-mounted, inverter-controlled motor.
  • Sand hopper is equipped with vibrator.

Double Screen Drum

  • Unique dual-purpose Screen Drum combining drying and screening of aggregates in a single drum.
  • Screens are configured for easy maintenance.

Mobile Screen Drum Module

  • Unique dual-purpose Double Screen Drum combining drying and screening of aggregates in a single drum.
  • Screens are configured for easy replacement
  • Hot Mineral Bins are located directly below the drum to maximise conductive heat from the Screen Drum and Main Burner.

Mobile Weighing & Mixing Module

  • Unique dual-purpose Double Screen Drum combining drying and screening of aggregates in a single drum
  • Screens are configured for easy replacement
  • Hot Mineral Bins are located directly below the drum to maximise conductive heat from the Screen Drum and Main Burner

SPECIFICATIONS

Model TSD1000 TSD1500 TSD2000
Capacity* 40-60 tph 100-120 tph 120-160 tph
Batch Cycle Time 45-55 sec. 45-55 sec. 45-55 sec.
Aggregate Temp. Increase 150 °C 150 °C 150 °C
Exhaust Gas Temperature 90-140 °C 90-140 °C 90-140 °C
Number of Hoppers 3 units 4 units 5 units
Volume of Each Hopper 6 m3 6 m3 6 m3
Total Screening Area 21 m2 25 m2 46 m2
Number of Screen Compartments 4 folds 5 folds 4 folds
Type of Fuel Diesel/Heavy Oil/Gas Diesel/Heavy Oil/Gas Diesel/Heavy Oil/Gas
Burner Capacity 6 MW 7.25 MW 10 MW
Hot Mineral Bins Capacity 10 ton 12 ton 15 ton
Aggregate Weigher Capacity 1150 kg 1350 kg 2000 kg
Filler Weigher Capacity 175 kg 225 kg 300 kg
Bitumen Weigher Capacity 150 kg 150 kg 200 kg
Mixer Capacity 1150 kg 1500 kg 2000 kg
Filter Area 306 m2 377 m2 550 m2
Optional Equipment
External Hot Storage Silo - Capacity 100 tons 100 tons 100 tons
Foreign Filler Silo - Capacity up to 60 m3 up to 60 m3 up to 60 m3
Bitumen Tank - Capacity 20 or 45 tons 20 or 45 tons 20 or 45 tons
Bitumen Decanter - Decanting Rate** 2-3 tph 2-3 tph 2-3 tph

*Capacity as per standard plant performance based on 3% moisture content

**Depending on bitumen drum’s size.

NB: Specifications are subject to technical modifications.
